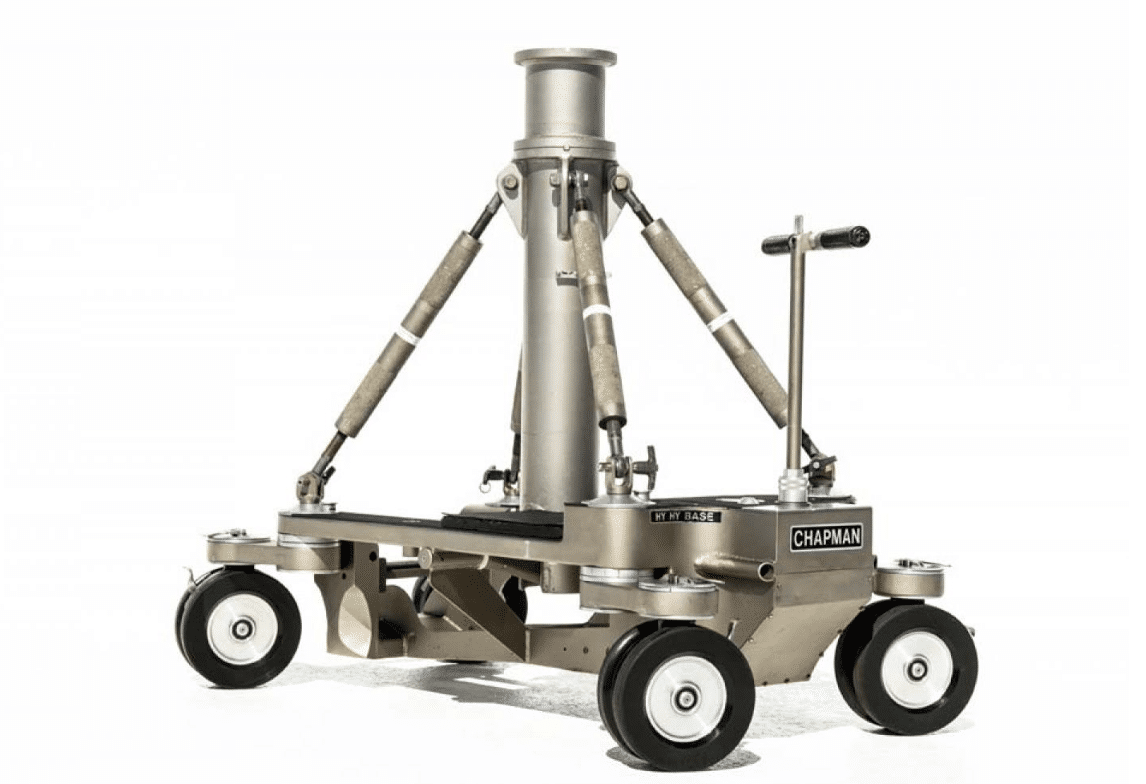

Hy Hy Base
Incorporates Brakes on All Wheels Shortened Steering Column to Allow 360 Degree Swing of Crane Arm Removable Center Post for Easy Transportation and Storage Works on Straight or Curved Track Various Tires for Different Terrains Incorporates Both Crab and Conventional Steering Capabilities Ability to Mount Most Types of Crane Arms.
Specifications
Features
Downloads (Coming Soon)
Maximum Payload*
2,900 lb / 1,315 kg
Standard Mount Height
3 ft. 5.5 in. / 1.05 m
Maximum Mount Height (with 7.5 inches Riser)
4 ft .1 in. / 1.24 m
Maximum Chassis Length (Wheels Extended)
4 ft. 7.75 in. / 1.42 m
Minimum Chassis Length for Transportation (Center Post Down)
5 ft. 1 in. / 1.55 m
Minimum Chassis Height for Transportation
20 in / 51 cm
Chassis Width - Legs at 0 degrees
2 ft. 3 in. / 69 cm
Chassis Width - Legs at 12 degrees
2 ft. 5.5 in. / 75 cm
Chassis Width - Legs at 45 degrees
2 ft. 11 in. / 89 cm
Chassis Width - Legs at 90 degrees (Note: Add 2 inches for Pneumatic Tire Setup)
3 ft. 3 in. / 99 cm
Standard Steering Post Height
3 ft / 91 cm
Minimum Turn Radius
3 ft. 1.5 in. / 95 cm
Hand Brake Holding Capacity (Wheel Brake)
200 lb / 91 kg
Center Post Carrying Weight
66 lb / 30 kg
Chassis Carrying Weight
265 lb /120 kg
Operational Weight with 7.5 inches Riser (No Payload)
360 lb / 163 kg
**Payload includes All Items (i.e. Man, Camera, Platform, Turret, Crane Arm, etc.) on Base Mount.
Incorporates Brakes on All Wheels
Shortened Steering Column to Allow 360 Degree Swing of Crane Arm
Removable Center Post for Easy Transportation and Storage
Works on Straight or Curved Track
Various Tires for Different Terrains
Incorporates Both Crab and Conventional Steering Capabilities
Ability to Mount Most Types of Crane Arms with a Mitchell 100 Mount
Adjustable Chassis
Many Accessories Available
