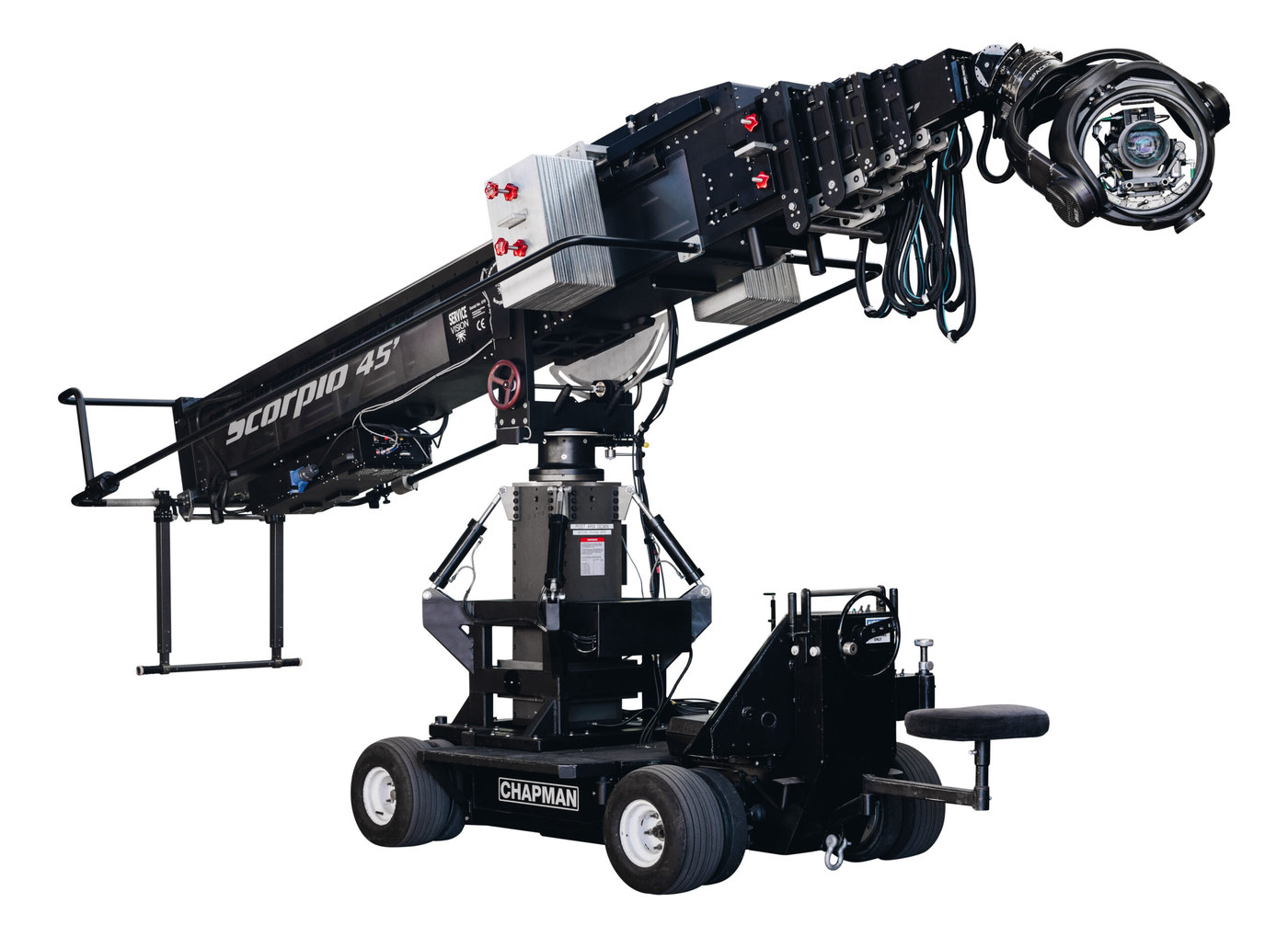

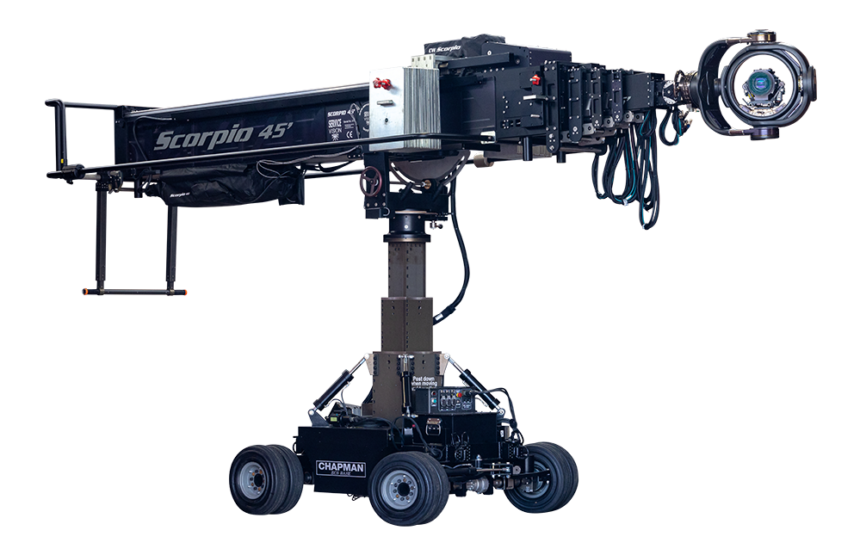

Scorpio 45

The design of this equipment has been based on the desire to reach the perfect compromise between the maximum distance of telescopic travel, the best movement of the arms, the highest possible load for the standard needs of a running-in and the possibility of being installed and operated by the technicians in a reasonably simple way.

Product Overview and Key Features Specifications Downloads

The Scorpio 45′ is a telescopic crane made up of telescopic tubes and a central one designed and manufactured with the same technology as the Scorpio 23′.

It is manufactured using an extrusion process to achieve the greatest rigidity and uniformity along with the best finishes.

The design of this equipment has been based on the desire to reach the perfect compromise between the maximum distance of telescopic travel, the best movement of the arms, the highest possible load for the standard needs of a running-in and the possibility of being installed and operated by the technicians in a reasonably simple way.

FEATURES

  • Programmable limits on the telescopic movement of the arm
  • Programmable movements of the telescopic arm
  • Motion Generator of the telescopic arm respect to Pan or Tilt
  • Data displayed on screen: arm range, height of the optic axis and Pan and Tilt angles
  • Arm speed and Damping adjustable and displayed on the screen
  • Programmable Stop Sequence
  • Pan, Tilt and Arm encoder output for Motion Capture jobs
  • 4 telescopic sections plus Central Arm
  • Smooth movement in high and slow speed
  • Noise reduction system of the telescopic arm movement
  • The head can be mounted Underslung or Overslung
  • Dynamic counterweight system
  • Adjustable fluid in Pan and Tilt
  • 55º inclination on the Tilt arm
  • 2 telescopic column to higher 2 position
  • Selectable width of the articulated legs with lockable position

All Specs are to the Mitchell nose mount, excluding addition length and height that will be easily acquired with the M7Evo and Chapman ORBITOR.

Full extension
45’11”
Full retraction
7’10”
Travel length
38’
Rear length
9’2”
Max speed
8’6” per sec
Max nose load under slung w/ leveling nose
154lbs
Max nose load w/ orbiter nose
250 LBS *M7 EVO required
Max load over slung w/ leveling nose
99 LBS
Max Height to Mitchel over slung, on ECS base posted up
43’10”
Max height to Mitchel under-slung, on ECS base
40’2”
Lowest Point of Arm on ECS base posted down
7’6”
Lowest Point of fulcrum pivot point on ECS base posted down
(Specs coming Soon)
Max height to Mitchell over slung, on UATB Chassis posted up
44’6”
Max height to Mitchell under slung, on UATB Chassis posted up
42’2”
Lowest Point of Arm on UATB Chassis posted down
8’8”
Max Height to Mitchel over slung, on Super Raptor base posted up
(Specs coming Soon)
Max height to Mitchel under-slung, on Super Raptor base
(Specs coming Soon)
Lowest Point of Arm on Super Raptor base posted down
(Specs coming Soon)
Max Height to Mitchel over slung, on Mini Mav base posted up
(Specs coming Soon)
Max height to Mitchel under-slung, on Mini Mav base
(Specs coming Soon)
owest Point of Arm on Mini Mav base posted down
(Specs coming Soon)
Crane Weight with ECS base, M7 and standard camera package
6,465 LBS
Crane Weight with Scorpio base, M7 and standard camera package
(Specs coming Soon)
Crane Weight with UAT Chassis, M7 and standard camera package
(Specs coming Soon)
Crane Weight with Super Raptor base, M7 and standard camera package
(Specs coming Soon)
Crane Weight with Mini Mav base, M7 and standard camera package
(Specs coming Soon)
Shipping Weight of stripped arm
1,530 LBS
Shipping Weight of stripped arm in crate
(Specs coming Soon)
