  • Camera Dollies
  • SKU: 1610

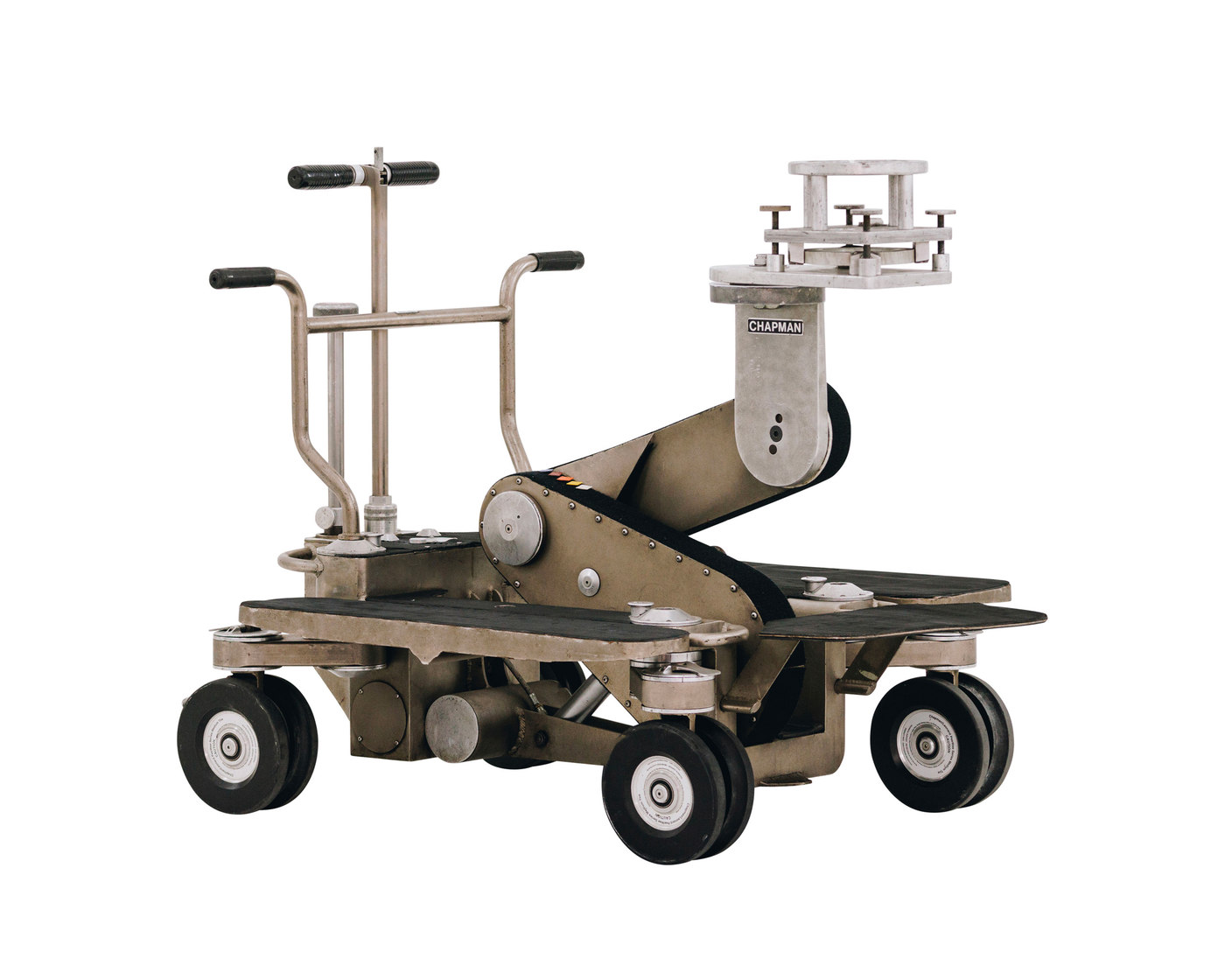

Super PeeWee II

The Super PeeWee II comes with a Standard Accessory Package. If you are looking for additional or custom accessories, please choose from the options below.

Full Accessory Package

Custom Accessory Package

Key Features Specifications Included Accessories Downloads (Coming Soon)
  • Incorporates a Universal Stop Valve System
  • Electric Pump System
  • Nickel Plated for Less Maintenance
  • Larger Auxilary pump for added lifts
  • Special Off Road Wheel additional accessory for transport over rough terrain
  • Variable Chassis Leg Adjustment Cam-Lock Chassis, allows this unit to adapt to many different locations and to work on various track widths
  • Planetary Gear-Driven Arm
  • Hardened Stainless Steel Bushings
  • Works on Both Straight and Curved 24 1/2 Tubular Track or 880 mm Track
  • Compact and Lightweight for Travel and Storage
  • Variety of Tires Available to Accommodate Different Terrains
  • Auxiliary Air Tank
  • Enclosed King Pin System
  • Brakes on Rear Wheels
  • Rear Controlled Steering
  • Corrected Steering Geometry
  • Many Accessories Available
Carrying weight
280 lb / 127 kg
*Maximum payload
250 lb / 113 kg
Maximum camera mount height (without Risers)
4 ft. 7 in. / 1.4 m
Max. camera mount height (with standard 12" Riser)
5 ft. 7 in. / 1.7 m
Minimum camera mount height (without Riser)
24 in. / 61 cm
Minimum Camera mount height with PeeWee 90º plate
3 in. / 8 cm
Vertical travel
2 ft. 7 in. / 79 cm
**Maximum payload with high post kit
1,100 lb / 499 kg
Maximum boom lifts (fully charged)
4 Lifts
Accumulator Charging Time (Empty to full)
60 Sec.
Chassis maximum length (wheels fully extended)
3 ft. 7 in. / 1.09 m
Chassis minimum length (wheels fully retracted)
34 1/2 in. / 88 cm
Minimum chassis height for transportation
16 in. / 41 cm
Chassis width - legs at 0º position
20 in. / 51 cm
Chassis width - legs at 17º position (pneumatic tire position)
23 1/2 in. / 60 cm
Chassis width - legs at 45º position
2 ft. 4 1/2 in. / 72 cm
Chassis width - 90º (sideways/scissor track position)
2 ft. 8 in. / 81 cm
Steering post height
2 ft. 11 in. / 89 cm
Minimum turn radius
24 in. / 61 cm
Min door width dolly can be carried through
16 in. / 41 cm
Standard operational weight
329 lb / 149 kg
Operational weight with high post kit (no payload)
386 lb / 175 kg
Dolly Shipping Weight w/Crate
475 lb / 215.4 kg
Dolly Shipping Crate Dimensions
L 43 in x W 27 in x H 36 in
Dolly Accessory Cart Shipping Weight w/Crate
346 lbs. / 156.9 kg
Dolly Accessory Crate Dimensions
L 44 in x W 35 in x H 28 in

*Payload includes All Items (i.e. Man, Camera, Platform, Turret, Crane Arm, etc.) on Arm
**Payload includes All Items (i.e. Man, Camera, Platform, Turret, Crane Arm, etc.) on Base Mount.

Please view below for the equipment that is included as standard with a Super PeeWee II rental. Need more accessories? Check out our Full Package, or build your own Custom Package.

 - 12" CAMERA RISER
 - CASTLE RING - MITCHELL
 - CAMERA DOLLY SEAT COMPLETE
 - 12" DOLLY SEAT RISER-LONG POST
 - VALVE CONTROL HANDLE,PW-SPW 3+
 - TILT NOSE PLATE COMPLT,PW-SPW2
 - MITCH 4-WAY LEVEL HEAD,PW-SPW2
 - FRONT BOARD, PW/SPW-SPW 3+
 - PEEWEE NARROW SIDEBOARD
 - WRENCH, PEEWEE/SPW/SPW 2
 - PIGTAIL COMPLETE,PW-SPW 3+
 - MEDIUM TIRE, PW-SPW 5 SET (8)
 - UNIVERSAL STOP VALVE,SPW 2/3+
