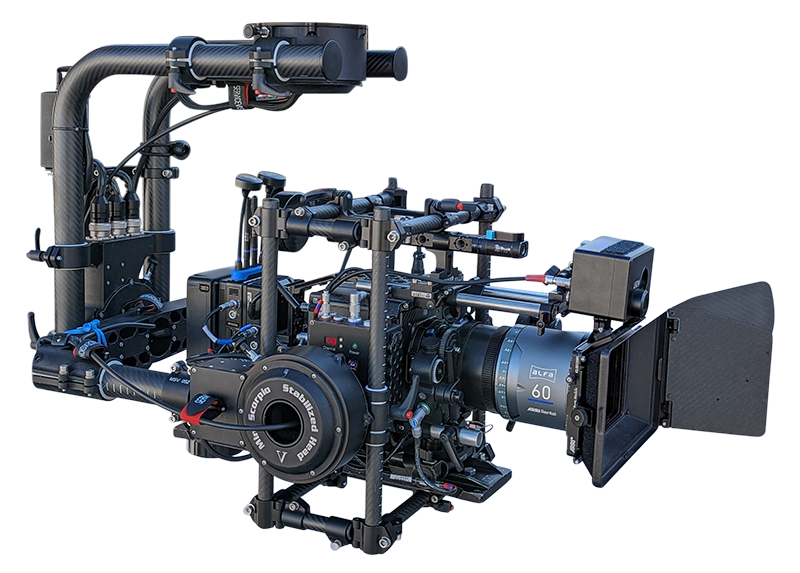

Mini Scorpio Stabilized V Head

The Mini Scorpio Stabilized Head V is a new level in the small stabilized heads. Following the principles of the Scorpio Stabilized V, the design of the new gyros, new mechanics and new software allows to be Small and Light with high capacity and high level of stabilization.

MINI SCORPIO STABILIZED V HEAD

Product Information

Description Features Specifications

The Mini Scorpio Stabilized Head V is a new level in the small stabilized heads. Following the principles of the Scorpio Stabilized V, the design of the new gyros, new mechanics and new software allows to be Small and Light with high capacity and high level of stabilization.

With the NEW touch panel control the capacity of memorize movements is available even in stabilized mode.
• Pan, Tilt and Roll have a speed of 2 seconds x 360º
• Smart construction to allow use standard cameras with standard accessories
• All the connections, covers and movements are protected for water allowing to work under humidity or rain without rain cover for the head.
• The new method of control allows to be stable on the drift and easy to maintain the horizon with the new real horizon function.
• Possibility to disconnect back PAN without losing stabilization.
• The main thing in a stabilized head is the level of stabilization. The Mini Scorpio Stabilized Head V incorporates new mechanics and electronics designed in detecting a big range of frequencies of vibrations and with enough speed to correct faster than other heads. Is for that, the vibrations isolator becomes an accessory to use only in necessary cases.

Power for all film and video cameras
• Power for witness camera
• Power supply for Scorpio Focus or other popular Lens Control
• Three control systems are available: Handwheels, Joystick and Pan Bar (JDR)
• Programmable limits, Damping and Speed adjustment for all axes
• Back PAN: ON or OFF keeping the same level of stabilization
• Real horizon
• Different vibrations isolator are available
• Memorization capacity in all axis even in Stabilized mode
• Generator of vibrations with different levels of frequency available

Head weight
45 lbs/20kg
Max. Payload
45 lbs/20kg
Voltage requirements
30V DC
Turn speed
360º/2 seconds
Standby consumption
800 mA
Max. usable focal lens
200 mm
