Camera Dollies
SKU: 16701

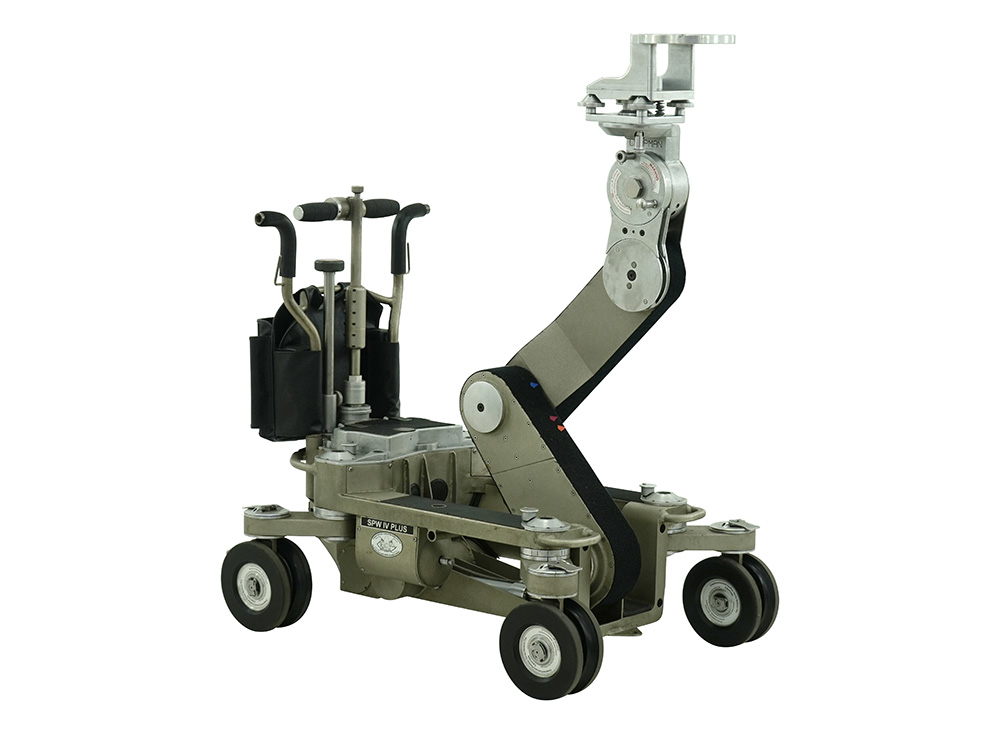

Super PeeWee IV+

Name: Super PeeWee IV+
SKU: 16701

The Super PeeWee IV+ comes with a Standard Accessory Package. If you are looking for additional or custom accessories, please choose from the options below.

Product Overview and Key Features SPECIFICATIONS Downloads (Coming Soon) Included Accessories

Choose a tab

Revolutionary three mode transmission: conventional, crab and round steering
Incorporates a steering column with clutch Can shift while the dolly is moving or stationary
New rigid silent chain driven arm
Transmission allows perfect steering geometry when configuring the chassis to its various leg positions
Less maintenance plus openings for easy access
No need for air bleeding eliminated Corrosion resistance improvement
All exposed working joints are sealed for easy maintenance
Can be used with rain cover
All adjustments can be done externally without removing bolted covers or lids
Larger hydraulic capacity that requires less recharging, 5 lifts on one charge
Arm provides greater operator clearance with greater rigidity, smoothness, speed & added vertical travel
Arm allows for lower camera setup
Valve concept allows for easy control and provides a greater speed with added precision
Stop valve requires no tools for adjustments to the Universal head
New Light Weight Aluminum Side Board System
Side board system that provides a complete walk-a-round ability at both the high and low levels
Various leg positions - see specification
Special Off Road Wheel additional accessory for transport over rough terrain
Works on Both Straight and Curved 24 1/2in Tubular Track or 880 mm Track
Build in heat control for the Hydraulic system to maintain a minimum hydraulic oil temperature

Carrying Weight

295 lb / 134 kg

Maximum Camera Mount Height (Position 1- 90 degrees Mode)

5 ft. 0.5 in. / 1.53 cm

Minimum Camera Mount Height (Position 1- 90 degrees Mode)

27.25 in. / 69 cm

Vertical Boom Travel (Position 1- 90 degrees Mode)

33.25 in / 84 cm

Maximum Camera Mount Height (Position 2 - 45 degrees Mode

4 ft. 10.5 in. / 1.48 m

Minimum Camera Mount Height (Position 2 - 45 degrees Mode)

26 in. / 66 cm

Vertical Boom Travel (Position 2 - 45 degrees Mode)

33.25 in. / 84 cm

Maximum Camera Mount Height (Position 3 - Low Mode)

4 ft. 3.5 in. / 1.3 m

Minimum Camera Mount Height (Position 3 - Low Mode)

19 in. / 48 cm

Vertical Boom Travel (Position 3 - Low Mode)

33.25 in. / 84 cm

Maximum Camera Mount Height (Position 4 - Extender Mode)

5 ft. 0.5 in. / 1.53 m

Minimum Camera Mount Height (Position 4 - Extender Mode)

19 in / 48 m

Minimum Camera Mount Height (Position 4 - Extender Mode)

19 in / 48 m

Min. Camera Mt Height (Low Bar/Low 4-Way Leveling Head)

4.5 in / 11 cm

Max. Camera Mt Height (Low Bar/Low 4-Way Leveling Head)

3 ft. 1 in. / 94 cm

Please view below for the equipment that is included as standard with a Super PeeWee V rental. Need more accessories? Check out our Full Package, or build your own Custom Package.

12" CAMERA RISER
CASTLE RING - MITCHELL
DOLLY SEAT W/ LOCKING PIN
12" DOLLY SEAT RISER-LONG POST
VALVE CNTRL HANDLE,SPW/HUS 4/5
LEVELING HEAD 4-1/2" RISE
NUT,SPW 3+/4/5 SWING HEAD ADJ
UNIVERSAL LOW PLATE,SPW 3+/4/5
SILICONE MOLD RELEASE,ZEP-PAR
UNIVERSAL WRENCH,SPW 3+/4/5
SPW 4/5 MI BOARDS-SET OF 3
MI LEFT SIDEBOARD,SPW 4/5
MI RIGHT SIDEBOARD,SPW 4/5
MI FRONT BOARD,SPW 4/5
MEDIUM TIRE, PW-SPW 5 SET (8)
SINGLE CLIP,QUICK TIRE CHANGE
REAR KICK PAD,SPW 4/5

Accessory Packages

Choose between the 'Full Package' or a custom built package.

Full Package PeeWee IV+

The full package of accessories takes the PeeWee IV+ to the next level. Items include: Super PeeWee V ACCESSORY KIT 3″ CAMERA RISER 6″ CAMERA… View Bundle
