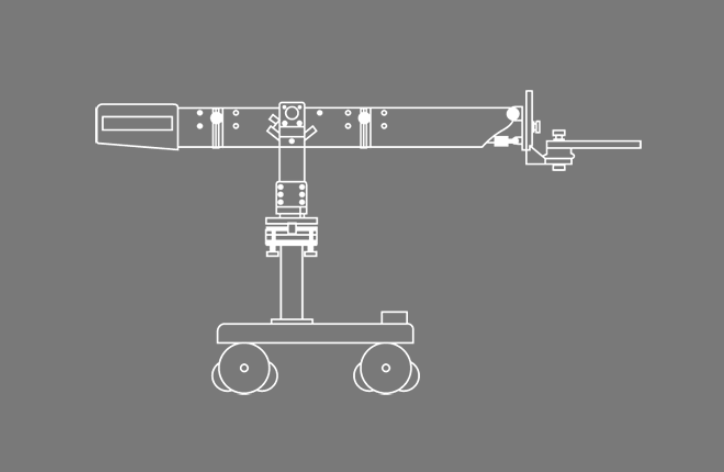

Areo Jib Crane
The Aero Jib crane is one of the most versatile and flexible jib arms used in the industry. This jib crane provides optimal balance and weight distribution, delivering superior stability with minimum play and adjustment. Unlike telescopic cranes, the Aero Jib crane is a more compact arm for mounting to dollies, bases, or custom rigs.
Product Overview and Key Features
Specifications
Downloads
The fully automated TechnoDolly features three telescopic crane beams, mounted on a mobile base with pneumatic wheels. The gyroscopic stabilized TechnoheadS provides precise pan and tilt capabilities, supporting cameras with a payload of up to 35 kg or 77 lbs. Operators can completely program and control the crane directly from a workstation.
Min. lens height when fully over-slung
28 ft.
Min. lens height under-slung
24 ft.
Min. length from center
7 ft.
Max. length from center
26 ft.
Max. telescopic movement
19 ft.
Max. speed
6.2 ft/s
Max. Weight of the telescopic arm
290 kg
Max. Weight of the electronic column
260 kg
Total weight including any camera and lens up to 13 kg
1100kg
