TechnoDolly 25

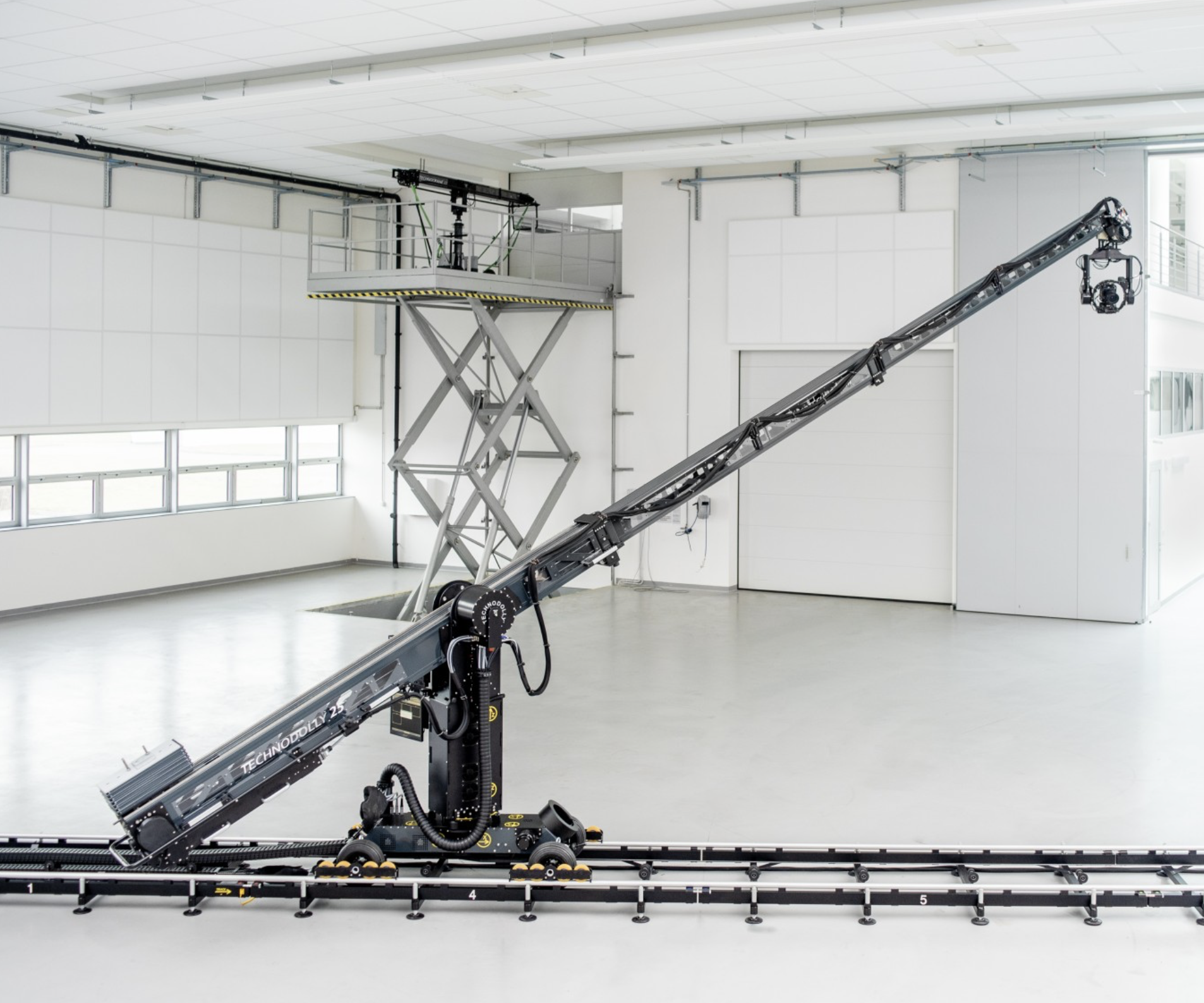

The fully automated TechnoDolly features three telescopic crane beams, mounted on a mobile base with pneumatic wheels.
Product Overview and Key Features
Specifications
Downloads
The fully automated TechnoDolly features three telescopic crane beams, mounted on a mobile base with pneumatic wheels. The gyroscopic stabilized TechnoheadS provides precise pan and tilt capabilities, supporting cameras with a payload of up to 35 kg or 77 lbs. Operators can completely program and control the crane directly from a workstation.
Min. lens height when fully over-slung
28 ft.
Min. lens height under-slung
24 ft.
Min. length from center
7 ft.
Max. length from center
26 ft.
Max. telescopic movement
19 ft.
Max. speed
6.2 ft/s
Max. Weight of the telescopic arm
290 kg
Max. Weight of the electronic column
260 kg
Total weight including any camera and lens up to 13 kg
1100kg
